Simple circuit B (Mt2015 q4b)

Problem Statement

Taken from 2015 midterm question 4

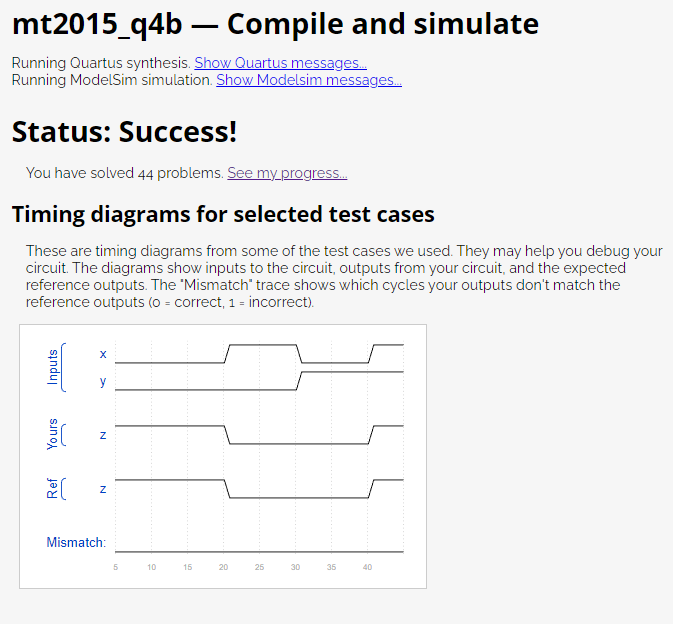

Circuit B can be described by the following simulation waveform:



module top_module ( input x, input y, output z );
	assign z = x ^~y; //xnor gate
endmodule
