Module addsub

Problem Statement

An adder-subtractor can be built from an adder by optionally negating one of the inputs, which is equivalent to inverting the input then adding 1. The net result is a circuit that can do two operations: (a + b + 0) and (a + ~b + 1). See Wikipedia if you want a more detailed explanation of how this circuit works.

Build the adder-subtractor below.

You are provided with a 16-bit adder module, which you need to instantiate twice:

module add16 ( input[15:0] a, input[15:0] b, input cin, output[15:0] sum, output cout );

Use a 32-bit wide XOR gate to invert the b input whenever sub is 1. (This can also be viewed as b[31:0] XORed with sub replicated 32 times. See replication operator.). Also connect the sub input to the carry-in of the adder.

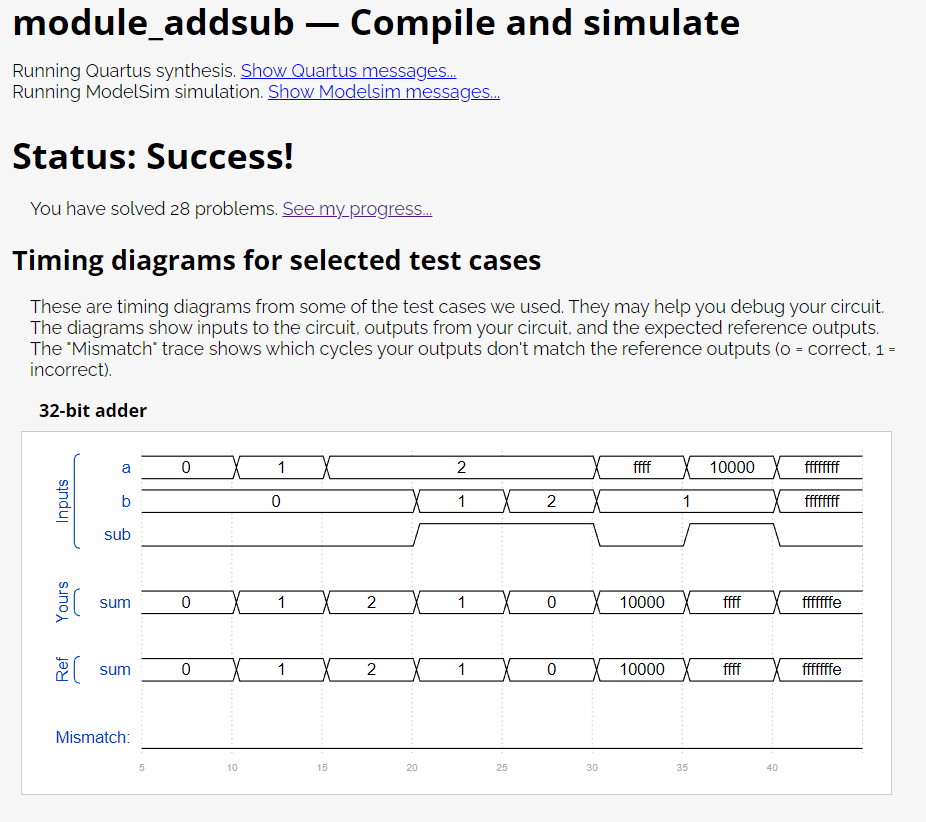

//성공 코드
module top_module(
    input [31:0] a,
    input [31:0] b,
    input sub,
    output [31:0] sum
);
	wire [31:0] x;
    wire [15:0] sum1, sum2;
    wire cout1, cout2;

    assign x = b^{32{sub}};

    add16 instance1 (a[15:0], x[15:0], sub, sum1, cout1);
    add16 instance2 (a[31:16], x[31:16], cout1, sum2, cout2);

    assign sum = {sum2, sum1};

endmodule
//실패 코드
module top_module(
    input [31:0] a,
    input [31:0] b,
    input sub,
    output [31:0] sum
);
	wire [31:0] x;
    wire [15:0] sum1, sum2;
    wire cout1, cout2;

    assign x = b^{32{sub}};

    add16 instance1 = (a[15:0], x[15:0], sub, sum1, cout1);
    add16 instance2 = (a[31:16], x[31:16], cout1, sum2, cout2);

    assign sum = {sum2, sum1};

endmodule
//모듈 인스턴스화를 할 때 = 연산자를 사용하면 안된다.
