FND, 가산기, 감산기
2023. 6. 16. 15:13ㆍ[Harman] 세미콘(semiconductor) 아카데미-반도체설계/Verilog를 이용한 RTL 시스템 반도체 설계
728x90

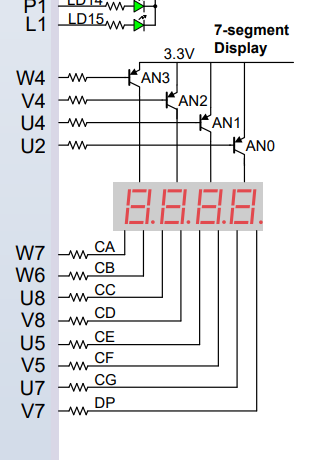

BASYS3의 [W4 V4 U4 U2]는 P타입 BJT이므로 BASE에 LOGIC 0을 줘야 PNP BJT가 도통되어 FND에 신호가 인가된다.
- EXAMPLE3
`timescale 1ns / 1ps
module clockDivider(
input clk,
input reset_n,
output reg clk100Hz
);
reg [25:0] cnt = 0;
always @(posedge clk or negedge reset_n) begin
if(!reset_n) begin
cnt <= 26'b0;
clk100Hz <= 1'b0;
end
else if(cnt == (26'd50000 - 1)) begin
cnt = 26'd0;
clk100Hz <= ~clk100Hz;
end else
cnt = cnt +1'b1;
end
endmodule
`timescale 1ns / 1ps
module COUNTER(
input reset_n,
input clk100Hz,
output reg [1:0] count
);
always @(posedge clk100Hz or negedge reset_n) begin
if(!reset_n)
count <= 2'b0;
else
count <= count + 1'b1;
end
endmodule
`timescale 1ns / 1ps
module FNDSEL(
input clk,
input [1:0] fndselin,
output reg [3:0] out
);
always @ (posedge clk) begin
case (fndselin)
2'b00 : out = 4'b1110;
2'b01 : out = 4'b1101;
2'b10 : out = 4'b1011;
2'b11 : out = 4'b0111;
endcase
end
endmodule
`timescale 1ns / 1ps
module sorting_comparator(
input clk,
input [3:0] sort_a,
input [3:0] sort_b,
output reg [3:0] out1,
output reg [3:0] out2
);
always @(posedge clk) begin
if(sort_a >= sort_b) begin
out1 = sort_a;
out2 = sort_b;
end else if(sort_a < sort_b) begin
out1 = sort_b;
out2 = sort_a;
end
end
endmodule
`timescale 1ns / 1ps
module dataMUX(
input clk,
input [3:0] ina,
input [3:0] inb,
input [3:0] inc,
input [3:0] ind,
input [1:0] w_counter,
output reg [3:0] out
);
always @(posedge clk) begin
case(w_counter)
2'b00 : out = ina;
2'b01 : out = inb;
2'b10 : out = inc;
2'b11 : out = ind;
endcase
end
endmodule
`timescale 1ns / 1ps
module FND_Decoder_4x8(
input clk,
input [3:0] fndin,
output reg [7:0] out
);
always @(posedge clk) begin
case(fndin)
4'b0000 : out = 8'b01000000; //0
4'b0001 : out = 8'b01111001; //1
4'b0010 : out = 8'b00100100; //2
4'b0011 : out = 8'b00110000; //3
4'b0100 : out = 8'b00011001; //4
4'b0101 : out = 8'b00010010; //5
4'b0110 : out = 8'b000000010; //6
4'b0111 : out = 8'b01011000; //7
4'b1000 : out = 8'b000000000; //8
4'b1001 : out = 8'b000010000; //9
4'b1010 : out = 8'b00100000; //10
4'b1011 : out = 8'b00000011; //11
4'b1100 : out = 8'b00100111; //12
4'b1101 : out = 8'b00100001; //13
4'b1110 : out = 8'b00000100; //14
4'b1111 : out = 8'b00001110; //15
default : out = 8'b11111111;
endcase
end
endmodule
`timescale 1ns / 1ps
module top_fndcontrol(
input clk,
input reset_n,
input [3:0] ina,
input [3:0] inb,
output [3:0] out_mux,
output [7:0] FND
);
wire w_clkout;
wire [1:0] w_counter;
wire [3:0] fndin;
wire [3:0] compare_out1;
wire [3:0] compare_out2;
clockDivider clock_d (.clk(clk), .reset_n(reset_n), .clk100Hz(w_clkout));
COUNTER cnt(.reset_n(reset_n), .clk100Hz(w_clkout), .count(w_counter));
FNDSEL mux_1 (.clk(clk), .fndselin(w_counter), .out(out_mux));
sorting_comparator comp(.clk(clk), .sort_a(ina), .sort_b(inb), .out1(compare_out1), .out2(compare_out2));
dataMUX mux_2 (.clk(clk), .ina(ina), .inb(inb), .inc(compare_out2), .ind(compare_out1), .w_counter(w_counter), .out(fndin));
FND_Decoder_4x8 dec (.clk(clk), .fndin(fndin), .out(FND));
endmodule
## Clock signal
set_property -dict { PACKAGE_PIN W5 IOSTANDARD LVCMOS33 } [get_ports clk]
create_clock -add -name sys_clk_pin -period 10.00 -waveform {0 5} [get_ports clk]
## Switches
set_property -dict { PACKAGE_PIN V17 IOSTANDARD LVCMOS33 } [get_ports {ina[0]}]
set_property -dict { PACKAGE_PIN V16 IOSTANDARD LVCMOS33 } [get_ports {ina[1]}]
set_property -dict { PACKAGE_PIN W16 IOSTANDARD LVCMOS33 } [get_ports {ina[2]}]
set_property -dict { PACKAGE_PIN W17 IOSTANDARD LVCMOS33 } [get_ports {ina[3]}]
set_property -dict { PACKAGE_PIN W15 IOSTANDARD LVCMOS33 } [get_ports {inb[0]}]
set_property -dict { PACKAGE_PIN V15 IOSTANDARD LVCMOS33 } [get_ports {inb[1]}]
set_property -dict { PACKAGE_PIN W14 IOSTANDARD LVCMOS33 } [get_ports {inb[2]}]
set_property -dict { PACKAGE_PIN W13 IOSTANDARD LVCMOS33 } [get_ports {inb[3]}]
set_property -dict { PACKAGE_PIN R2 IOSTANDARD LVCMOS33 } [get_ports {reset_n}]
##7 Segment Display
set_property -dict { PACKAGE_PIN W7 IOSTANDARD LVCMOS33 } [get_ports {FND[0]}]
set_property -dict { PACKAGE_PIN W6 IOSTANDARD LVCMOS33 } [get_ports {FND[1]}]
set_property -dict { PACKAGE_PIN U8 IOSTANDARD LVCMOS33 } [get_ports {FND[2]}]
set_property -dict { PACKAGE_PIN V8 IOSTANDARD LVCMOS33 } [get_ports {FND[3]}]
set_property -dict { PACKAGE_PIN U5 IOSTANDARD LVCMOS33 } [get_ports {FND[4]}]
set_property -dict { PACKAGE_PIN V5 IOSTANDARD LVCMOS33 } [get_ports {FND[5]}]
set_property -dict { PACKAGE_PIN U7 IOSTANDARD LVCMOS33 } [get_ports {FND[6]}]
set_property -dict { PACKAGE_PIN V7 IOSTANDARD LVCMOS33 } [get_ports {FND[7]}]
set_property -dict { PACKAGE_PIN U2 IOSTANDARD LVCMOS33 } [get_ports {out_mux[0]}]
set_property -dict { PACKAGE_PIN U4 IOSTANDARD LVCMOS33 } [get_ports {out_mux[1]}]
set_property -dict { PACKAGE_PIN V4 IOSTANDARD LVCMOS33 } [get_ports {out_mux[2]}]
set_property -dict { PACKAGE_PIN W4 IOSTANDARD LVCMOS33 } [get_ports {out_mux[3]}]
- EXAMPLE4
`timescale 1ns / 1ps
module clockDivider(
input clk,
input reset_n,
output reg clk100Hz
);
reg [25:0] cnt = 0;
always @(posedge clk or negedge reset_n) begin
if(!reset_n) begin
cnt <= 26'b0;
clk100Hz <= 1'b0;
end
else if(cnt == (26'd50000 - 1)) begin
cnt = 26'd0;
clk100Hz <= ~clk100Hz;
end else
cnt = cnt +1'b1;
end
endmodule
`timescale 1ns / 1ps
module COUNTER(
input reset_n,
input clk100Hz,
output reg [1:0] count
);
always @(posedge clk100Hz or negedge reset_n) begin
if(!reset_n)
count <= 2'b0;
else
count <= count + 1'b1;
end
endmodule
`timescale 1ns / 1ps
module FNDSEL(
input clk,
input [1:0] fndselin,
output reg [3:0] out
);
always @ (posedge clk) begin
case (fndselin)
2'b00 : out = 4'b1110;
2'b01 : out = 4'b1101;
2'b10 : out = 4'b1011;
2'b11 : out = 4'b0111;
endcase
end
endmodule
`timescale 1ns / 1ps
module sorting_comparator(
input clk,
input [3:0] sort_a,
input [3:0] sort_b,
output reg [3:0] out1,
output reg [3:0] out2
);
always @(posedge clk) begin
if(sort_a >= sort_b) begin
out1 = sort_a;
out2 = sort_b;
end else if(sort_a < sort_b) begin
out1 = sort_b;
out2 = sort_a;
end
end
endmodule
`timescale 1ns / 1ps
module dataMUX(
input clk,
input [3:0] ina,
input [3:0] inb,
input [3:0] inc,
input [3:0] ind,
input [1:0] w_counter,
output reg [3:0] out
);
always @(posedge clk) begin
case(w_counter)
2'b00 : out = ina;
2'b01 : out = inb;
2'b10 : out = inc;
2'b11 : out = ind;
endcase
end
endmodule
`timescale 1ns / 1ps
module FND_Decoder_4x8(
input clk,
input [3:0] fndin,
output reg [7:0] out
);
always @(posedge clk) begin
case(fndin)
4'b0000 : out = 8'b01000000; //0
4'b0001 : out = 8'b01111001; //1
4'b0010 : out = 8'b00100100; //2
4'b0011 : out = 8'b00110000; //3
4'b0100 : out = 8'b00011001; //4
4'b0101 : out = 8'b00010010; //5
4'b0110 : out = 8'b000000010; //6
4'b0111 : out = 8'b01011000; //7
4'b1000 : out = 8'b000000000; //8
4'b1001 : out = 8'b000010000; //9
4'b1010 : out = 8'b00100000; //10
4'b1011 : out = 8'b00000011; //11
4'b1100 : out = 8'b00100111; //12
4'b1101 : out = 8'b00100001; //13
4'b1110 : out = 8'b00000100; //14
4'b1111 : out = 8'b00001110; //15
default : out = 8'b11111111;
endcase
end
endmodule
`timescale 1ns / 1ps
module add_sub(
input clk,
input m,
input [3:0] inx,
input [3:0] iny,
output reg [3:0] num10,
output reg [3:0] num01,
output reg result,
output reg LD0
);
reg [3:0] result1;
always @(posedge clk) begin
result = 1'b0;
if(m == 1'b1)begin
result1 = inx + iny;
LD0 = 1'b0;
end
else begin
if(inx > iny) begin
result1 = inx - iny;
LD0 = 1'b0;
end else if(inx == iny)begin
result1 = 0;
LD0 = 1'b0;
end else if(inx > iny) begin
result1 = inx - iny;
result = 1'b1;
LD0 = 1'b1;
end
end
if(m == 1) begin
num10 = result1 / 10;
num01 = result1 % 10;
end else begin
if(result >= 4'ha)begin
num10 = result1 / 10;
num01 = result1 % 10;
end else begin
num10 = 1'b0;
num01 = result1;
end
end
end
endmodule
`timescale 1ns / 1ps
module top_fndcontrol(
input clk,
input reset_n,
input [3:0] ina,
input [3:0] inb,
input mode,
output [3:0] out_mux,
output [7:0] FND,
output LD0
);
wire w_clkout;
wire [1:0] w_counter;
wire [3:0] fndin;
wire [3:0] compare_out1;
wire [3:0] compare_out2;
wire [3:0] num10;
wire [3:0] num01;
wire result;
clockDivider clock_d (.clk(clk), .reset_n(reset_n), .clk100Hz(w_clkout));
COUNTER cnt(.reset_n(reset_n), .clk100Hz(w_clkout), .count(w_counter));
FNDSEL mux_1 (.clk(clk), .fndselin(w_counter), .out(out_mux));
//sorting_comparator comp(.clk(clk), .sort_a(ina), .sort_b(inb), .out1(compare_out1), .out2(compare_out2));
add_sub as(.clk(clk), .m(mode), .inx(ina), .iny(inb), .num10(num10), .num01(num01), .result(result), .LD0(LD0));
dataMUX mux_2 (.clk(clk), .ina(ina), .inb(inb), .inc(num01), .ind(num10), .w_counter(w_counter), .out(fndin));
FND_Decoder_4x8 dec (.clk(clk), .fndin(fndin), .out(FND));
endmodule
## Clock signal
set_property -dict { PACKAGE_PIN W5 IOSTANDARD LVCMOS33 } [get_ports clk]
create_clock -add -name sys_clk_pin -period 10.00 -waveform {0 5} [get_ports clk]
## Switches
set_property -dict { PACKAGE_PIN V17 IOSTANDARD LVCMOS33 } [get_ports {ina[0]}]
set_property -dict { PACKAGE_PIN V16 IOSTANDARD LVCMOS33 } [get_ports {ina[1]}]
set_property -dict { PACKAGE_PIN W16 IOSTANDARD LVCMOS33 } [get_ports {ina[2]}]
set_property -dict { PACKAGE_PIN W17 IOSTANDARD LVCMOS33 } [get_ports {ina[3]}]
set_property -dict { PACKAGE_PIN W15 IOSTANDARD LVCMOS33 } [get_ports {inb[0]}]
set_property -dict { PACKAGE_PIN V15 IOSTANDARD LVCMOS33 } [get_ports {inb[1]}]
set_property -dict { PACKAGE_PIN W14 IOSTANDARD LVCMOS33 } [get_ports {inb[2]}]
set_property -dict { PACKAGE_PIN W13 IOSTANDARD LVCMOS33 } [get_ports {inb[3]}]
set_property -dict { PACKAGE_PIN T1 IOSTANDARD LVCMOS33 } [get_ports {mode}]
set_property -dict { PACKAGE_PIN R2 IOSTANDARD LVCMOS33 } [get_ports {reset_n}]
## LEDs
set_property -dict { PACKAGE_PIN U16 IOSTANDARD LVCMOS33 } [get_ports {LD0}]
##7 Segment Display
set_property -dict { PACKAGE_PIN W7 IOSTANDARD LVCMOS33 } [get_ports {FND[0]}]
set_property -dict { PACKAGE_PIN W6 IOSTANDARD LVCMOS33 } [get_ports {FND[1]}]
set_property -dict { PACKAGE_PIN U8 IOSTANDARD LVCMOS33 } [get_ports {FND[2]}]
set_property -dict { PACKAGE_PIN V8 IOSTANDARD LVCMOS33 } [get_ports {FND[3]}]
set_property -dict { PACKAGE_PIN U5 IOSTANDARD LVCMOS33 } [get_ports {FND[4]}]
set_property -dict { PACKAGE_PIN V5 IOSTANDARD LVCMOS33 } [get_ports {FND[5]}]
set_property -dict { PACKAGE_PIN U7 IOSTANDARD LVCMOS33 } [get_ports {FND[6]}]
set_property -dict { PACKAGE_PIN V7 IOSTANDARD LVCMOS33 } [get_ports {FND[7]}]
set_property -dict { PACKAGE_PIN U2 IOSTANDARD LVCMOS33 } [get_ports {out_mux[0]}]
set_property -dict { PACKAGE_PIN U4 IOSTANDARD LVCMOS33 } [get_ports {out_mux[1]}]
set_property -dict { PACKAGE_PIN V4 IOSTANDARD LVCMOS33 } [get_ports {out_mux[2]}]
set_property -dict { PACKAGE_PIN W4 IOSTANDARD LVCMOS33 } [get_ports {out_mux[3]}]
