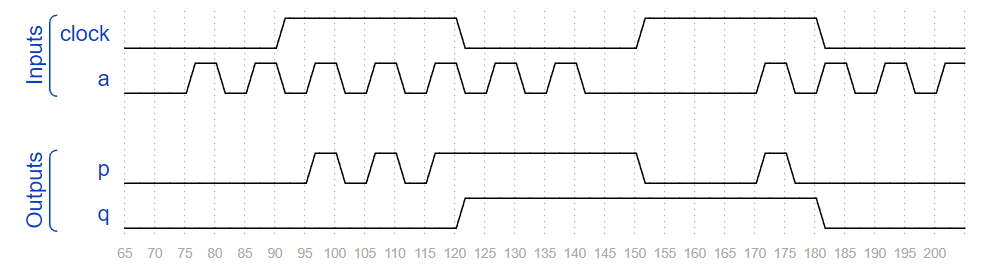

This is a sequential circuit. Read the simulation waveforms to determine what the circuit does, then implement it.
module top_module (
input clock,
input a,
output p,
output q );
always @(*) begin
if(clock)
p = a;
end
always @(negedge clock) begin
q <= a;
end
endmodule
